Internal Shelf Within the Hyper9 Control Cabinet

 A piece of 5052 Aluminum 0.061" x 26" x 27" was purchased at ALRO Metals Outlet ($14.00),  A 10.5" x 6.25" section was cut (DSC01847), and then formed into a platform with a top area of 10.5" x 3.25" and a height of about 1.625" (DSC01853 below).  The Gigavac contactor and the Shawmut fuse will be secured to the platform, and both will be significantly above the chiller plumbing.

DSC01847 showing the dimensions of the 5052 Aluminum plate prior to cutting with a bandsaw.

DSC01853 showing the end view of the formed platform.  The height to the top of the platform is 1.625".

DSC01855 showing the pair of slots that were cut in the platform to allow for the chiller coolant pipes.  The platform is upside down in this picture.

DSC01859 after placement of the Aluminum platform.

This platform fit easily between the cabinet wall and the controller (DSC01859).  The height of platform was the maximum possible that would allow a simple Copper 90 degree angle to be fabricated and used to connect the contactor and the bottom terminal of the main shutoff switch.

Copper Bus Bars Internal Connections

A bandsaw, 12 ton press, and an Eastwood brake, were used extensively to produce the bus bars required to interconnect the "Power Input to the Master Shut off to the Gigavac Contactor to the Ferraz-Shawmut 500 amp Main Fuse to the Controller B+ Terminal".  All bus bars were of 0.125" x 1.0" wide Copper plate.  The contactor and main fuse were mounted to an Aluminum platform that will be described in the next post.  The height of the platform placed the contactor, fuse, and controller terminals all in the same plane.

DSC01869 of the power input B+ (top right) bar connecting to the top half of the main shutoff switch (top left).  This bus bar was previously described in the May 18, 2023 post.

DSC01867 Bus bar to connect the master shut off switch B+ to the contactor prior to placement.  The piece was made from a piece of 0.125" x 3" long x 2" wide Copper plate that was bent into a 90 degree angle with the press brake.

DSC01868  Bus bar connecting the master shut off switch B+ to the contactor (middle back of picture) after installation.  Removal of the Copper bar adjacent to the nuts (lower right) allowed for the use of a 17 mm socket wrench for tightening.

DSC01860  Bus bar for connecting the contactor to the main fuse prior to placement.

DSC01861  Bus bar connecting the contactor to the main fuse after installation.

DSC01862  Side view of bus bar connecting the contactor to the main fuse after installation.  By taking advantage of the same height for the surfaces, no bends were required in the bar.

DSC01873  Side view of the bus bar Ver. 1 connecting the main fuse output to the controller B+ terminal prior to placement.

DSC01875 Oblique view of the bus bar Ver. 1 connecting the fuse output to the controller B+ terminal prior to placement.

DSC01871  Bus bar Ver. 1 connecting the fuse output to the controller B+ terminal after installation.  The overall height above the mounting points is 1.25".  Note that there is easy access to the B+ pre-charge terminal underneath this bar.

edited 5/31/2023

DSC01888 Bus bar Ver. 2 connecting the fuse output to the controller B+ terminal after installation.  Making the vertical height and the tab length at 1.25: fit the press brake well, but a 1.0" height and 1" tab length was difficult.  The use of a vise and mallet was required to finish the job.

DSC01889 Bus bar Ver. 2 connecting the fuse output to the controller B+ terminal after installation.  No loss of access to the B+ pre-charge in this smaller lighter version.  The overall height is now 1.0".

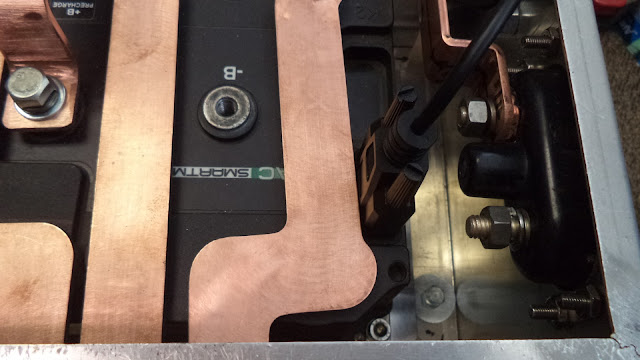

DSC01876 Showing the close proximity of the controller's K3  RS-232 serial port to the Power B- terminal on the cabinet (bottom right side).

Edited 5/30/2023

DSC01878 Showing the manila folder cardboard test model that was used during the design process  (the wooden rod for additional rigidity).

DSC01884 Showing the preliminary Aluminum test model fashioned after the cardboard test piece.  Note that there is significant clearance around the RS-232 serial port

DSC01883 Detail of the connection at the power B- input terminal on the side of the cabinet.

DSC01887 Showing the vertical height of the Aluminum test bus bar above the U1,V1, and W1 controller terminals.  The final bus bar will next be fabricated in Copper.

Chiller Plate Plumbing Incorporated into the Controller Enclosure

Using Aluminum pipe, the hose barbs connections to the chill plate (which may leak over time)  were located external to the enclosure.   A coolant leak within the controller box would likely go unnoticed until damage has already been done.  Teflon tape will be used on all threads and the enclosure penetration will employ grommets to reduce dirt and water entry.

All fittings are 1/8" NPT Aluminum and were sourced from McMaster-Carr:

2 x 90 degree elbow, part 44705K266, at $5.87 each;

1/8" pipe x 1.5"L nipple, part  44665K161, at $1.97;

1/8" pipe x 2.5"L nipple, part 44665H121 at $2.59:

1/8" pipe x 6" nipple, part 44665k119, at $4.75;

1/8" pipe x 8"L pipe nipple, part 44665K411, at $6.03:

qty 2 x 1/8" pipe to 1/4" hose barb, part 5357K51, at $7.44 each.

2 x Buna-N Rubber grommets, A=11/16", B=1/16", C=7/16", D=15/16", E=5/16".  Part  9307K25 at 50 for $10.91.

.

 DSC01761 of the above Aluminum fittings finger tightened to the controller (this shows an exit to the high voltage side).

DSC01760 after placement of the controller enclosure as a trial fitting showing that after tightening there will be room for the tubing.  Two holes with grommets will be prepared through the left wall of the enclosure for exit of the tubing (this shows an exit to the high voltage side).

DSC01830  after final installation with tubing exit to the low voltage side.

DSC01829 close up showing the exit of the cooling lines on the low voltage side.  The USB port for motor programming is at the top. Did not have an 11/16" drill and instead used a step drill and measured the opening with calipers until sized correctly.

DSC01831 showing an Aluminum plate located internally for mounting of additional components.

DSC01832 showing possible placement of components.  Power feed at upper left, master shutoff switch (red handle) lower left, controller top center, 500 amp fuse lower row (second from left), contactor (third from left), and optional amperage current sensor bottom right.

Rincon Power High Voltage Battery Disconnect HVBD4AXR

HVBD4AXR - 400 A Continuous High Voltage Battery Disconnect

A Rincon high voltage battery disconnect was selected for mounting on the controller enclosure as a maintenance switch.  This switch is available in 300A, 400A, and 600A versions.  The 400 amp (continuous) version was selected and it can handle up to 2000 amps for one minute. (EV West sells for  $159).

The disconnect switch data sheet can be found here:

https://uploads-ssl.webflow.com/605a2a14a7fc9726a217b0b2/6261cad9b014d13f844e4d93_HVBD%20SERIES%20DATASHEET_REV_D.pdf

DSC01741"external view" of the Rincon power switch in the "on" position.  The M8 mounting holes are 100mm center to center. The bolts are torqued to 110-120 IN-LB.  The handle is equipped with a lockout-tag out feature that accommodates a lock whose shank is less than 8.2 mm (0.32").  In this picture the switch is in the ON position.

DSC01744 of the "internal view" of the Rincon power switch.

DSC01745 side view showing the M10 (316 SS) electrical studs are torqued to 90-100 IN-LBS.  The diameter of the switch body is 68.65 mm  (2.70 ").

DSC01762 after attaching Avery 5165 shipping label stock to the side of the controller enclosure and outlining the required cuts needed to mount both the Rincon HVBD4AXR switch (right) and the Rebling 7009-3 power receptacle (left).

The Avery adhesive on the back of the label is very strong.  If was found that using a propane torch to heat the reverse side of the Aluminum resulted in softening of the adhesive.  It was possible to use a plastic putty knife to scrape off nearly all of the label.  Acetone on a cloth was then used to remove any residual film.



DSC01808 of the Rincon disconnect switch mounted on the side of  the controller enclosure. The switch is in the off position with a lock in place.

Connecting the Master Switch to the Power Receptacle

 updated 5/23/2023

A bus bar was prepared using a 0.125" x 1" x 5.625" copper plate.



DSC01836 showing the length dimensions.

DSC01837 showing bend height.

DSC01833 after installation of  the bus bar.  The height of the bend was slightly smaller then needed and a 0.125" copper washer was used on the power receptacle (upper right) to compensate.

DSC01834 side view of installed bus bar that connects the master shut off switch (Rincon) and the Rebling 7009-3 power receptacle.  In the foreground is the controller U1 bus bar.

Main Battery Pack Connector and Control Box

Purchased from EV Motor Verks Store (573-388-4580, sales@evtv.me) a Rebling 7009-3 Battery Receptacle ($88) and a Rebling 7016 Battery Disconnect Plug Cable Mount ($290).  The 7009 is equivalent to the Rebling 7002 connector and the connector set is rated at up to 750 volts DC, 750 amps continuous, and up to 1500 amps peak.  These connectors are rated for aircraft use and they are positive locking and very robustly manufactured.

Data sheets can be found here:

https://rebling.com/pdf/Rebling___Datasheet-Product___7016%20Avionics%20Cable-Mounted%20Plug%20ver%2020220602.pdf

https://rebling.com/products/two-wire-avionics-plug

DSC01728 picture of assembled female Rebling Plastics 7016 (right side) and male Rebling Plastics 7009 (left side, equivalent to Rebling 7002).

DSC01705 view of openings that allow for 2/0 electrical cables.

DSC01726 showing the 7009-3 (Top) and the locking plunger (center) that is rotated into the receptacle using the half-turn handle.

DSC01703 left side is Rebling 7009-3 (male) and on the right side is the Rebling 7016 (female).

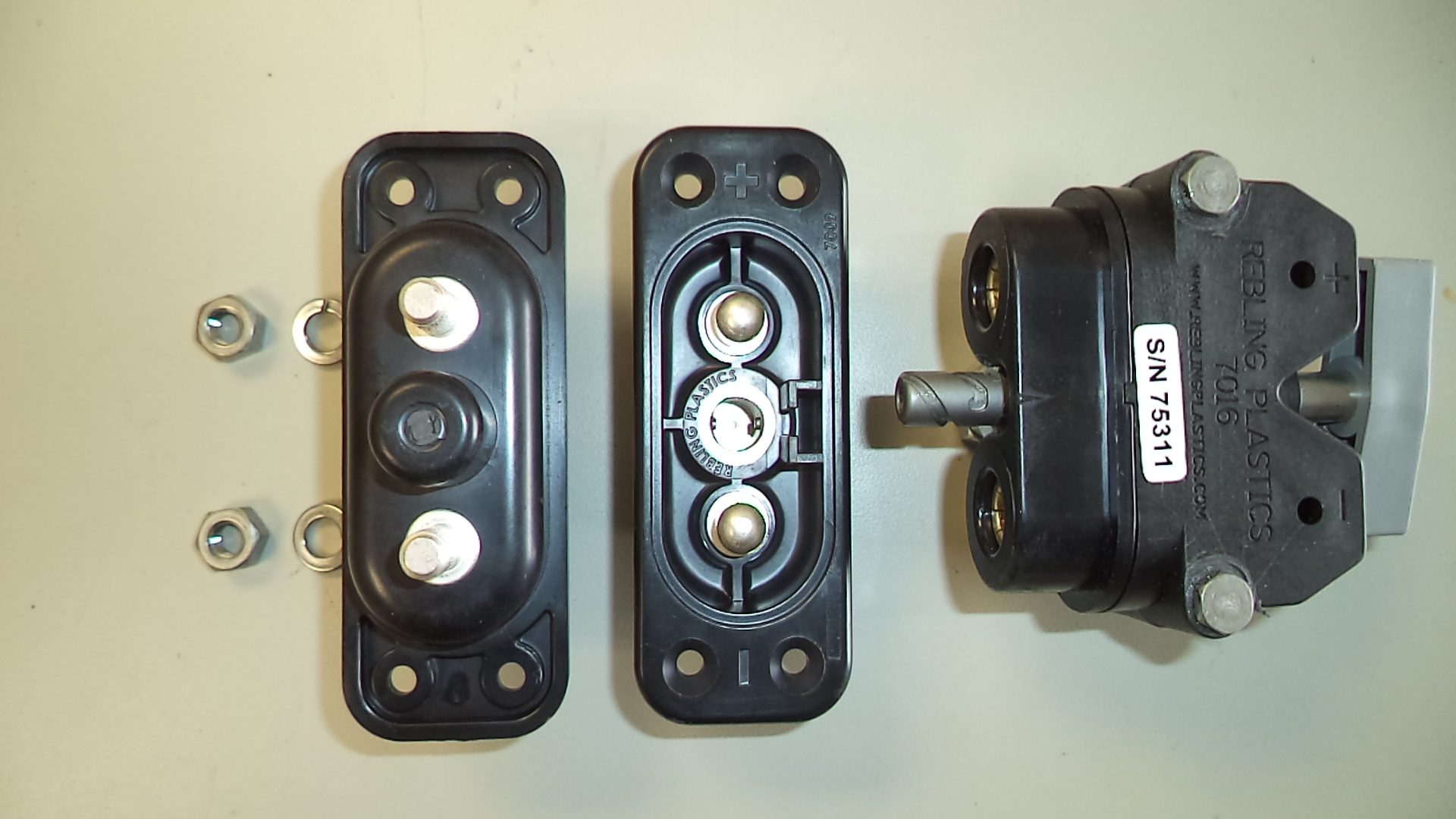

DSC01731 showing the Rebling 7009-3 (terminal studs, 5/16-18, far left as would be viewed from within the control box), middle (male, as would be  seen from outside the control box) and the Rebling 7016 (female) far right top view.

DSC01723 exploded view of the Rebling 7016 connector.  5/16-18 studs (center) are shown securing a pair of  2/0 terminal lugs.  The far left and far right plastic housings are bolted together with a pair of 10/32 x 1.625" bolts.

DSC01725 showing 7016 after installation of (+) and (-) 2/0 power cables.

DSC01801 showing the installed Rebling connector (left side) on the side of a controller enclosure.  The 7009-3 fits within a 1.50" x 2.90" opening in the controller box.

The rounded part of the 7009-3 are 1.375" diameter with a center to center distance of 1.54".

A cardboard template of the 7009 was prepared and used to mark the Aluminum of the box before cutting.

The four mounting bolts are 10-32 x 0.5" and Stainless Steel was selected.
